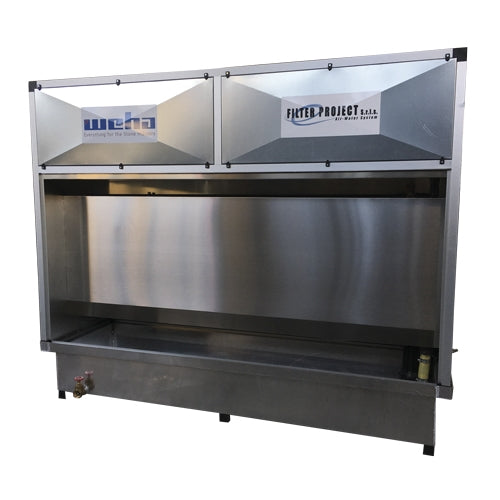

Water Suction Wall 3 Meter Tenax

Filter Project Wet Dust Collector Booths are designed to trap 90% of dust from granite, marble, engineered stone, quartz, quartzite and other airborne particles. Easy-to-operate.

Water Wall Dust Collector is built in aluminum sheet metal and available in 10' (3 meter) and 13' (4 meters). Booth is equipped with submersible pump, centrifugal fan, electrical motor, spray nozz.es, galvanized drop separators and an electrical panel that is compliant with CE/UL rules.

The dust abatement is done through two phases: in the first phase, the waterfall on the front of the wall helps direct the dust into the wall. In the second phase, the dust is caught by the water nebulized through the spray nozzles and is washed down into the bottom tank. To clean, simply empty and clean up the bottom tank.

Specifications:

•Traps 90% of airborne dust and particles
•All aluminum, heavy duty
•Simple operation
•Financing available
•Requires 500 gallons of water
